OPTISWITCH 5150

Vibration level switch for liquids in hygienic applications

  • Point level detection of liquids in the food, beverage and pharmaceutical industry
  • Polished tuning fork to meet hygienic requirements
  • Density: ≥0.5 g/cm3 / 0.018 lb/in3
  • -50…+250°C / -58…+482°F; -1…64 barg / -14.5…925 psig

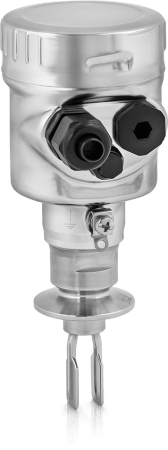

OPTISWITCH 5150 C – Version with stainless steel housing and Tri-clamp connection

Vibration level switch OPTISWITCH 5150 C – Version with stainless steel housing and Tri-clamp connection

The OPTISWITCH 5150 is a vibration level switch with polished tuning fork for liquid hygienic applications. It is a universal and reliable device for level detection in vessels. It detects low or high level and is mostly used for overfill, dry-run or pump protection. Installations in pipelines are also possible.

Product highlights

  • Polished tuning fork with a large choice of hygienic process fittings
  • Optional adapter for high temperatures up to +250°C / +482°F
  • Outputs: relay, transistor, 2-wire, NAMUR or contactless electronic switch
  • Optional gas-tight lead-through for toxic gases
  • In compliance with FDA and EC1935/2004

Typical applications

  • Hygienic applications in the food, beverage and pharmaceutical industries
  • Level detection, overfill protection, dry-run protection, pump protection

Technical data

Measurement principlesVibrating
Level measurement typePoint level detection
Measured mediaLiquids
Contact to measured mediumYes
Interface measurementNo
Probe length80…6000 mm/
3…236 in
Process pressure (relative)-1…64 barg/
-14.5…925 psig
Process temperature-50…250°C/
-58…482°F
Wetted partsAustenitic stainless steel (1.4404/316L)
Process sealsEthylene propylene diene monomer (EPDM), Fluorocarbon-based synthetic rubber (FKM/FPM), Kalrez® 6375, PFA

Process connections

Thread connectionsMale:
G¾, G1
¾ NPT, 1 NPT
Hygienic connectionsDairy screw (DIN 11851): DN40
Tri-Clamp®: 1", 1 1/2", 2"
Varivent®: N
SMS (1145): 38 mm
Fitting with compression nut: F40 (PN25)

Communication

Discrete outputs2-wire, Contactless, NAMUR, Relay, Transistor

Approvals/Standards

Certificates/Approvals Hygienic3A, EC 1935/2004, FDA
